DATA FLOW

At European XFEL, EXtra-foam receives data from the distributed control framework Karabo.

Data received from different sensors/detectors located at different locations need to be “aligned” for further analysis. At European XFEL, the accelerator produces 10 bunch trains per second. As a result, data are stamped and can only be aligned by Train ID. For big modular detectors like AGIPD, LPD, DSSC, etc., alignment of data from different modules are carried out in the so-called “calibration pipeline”. However, in most use cases, users will also want to align the detector data with motor positions and/or some other detectors (e.g. XGM, digitizer).

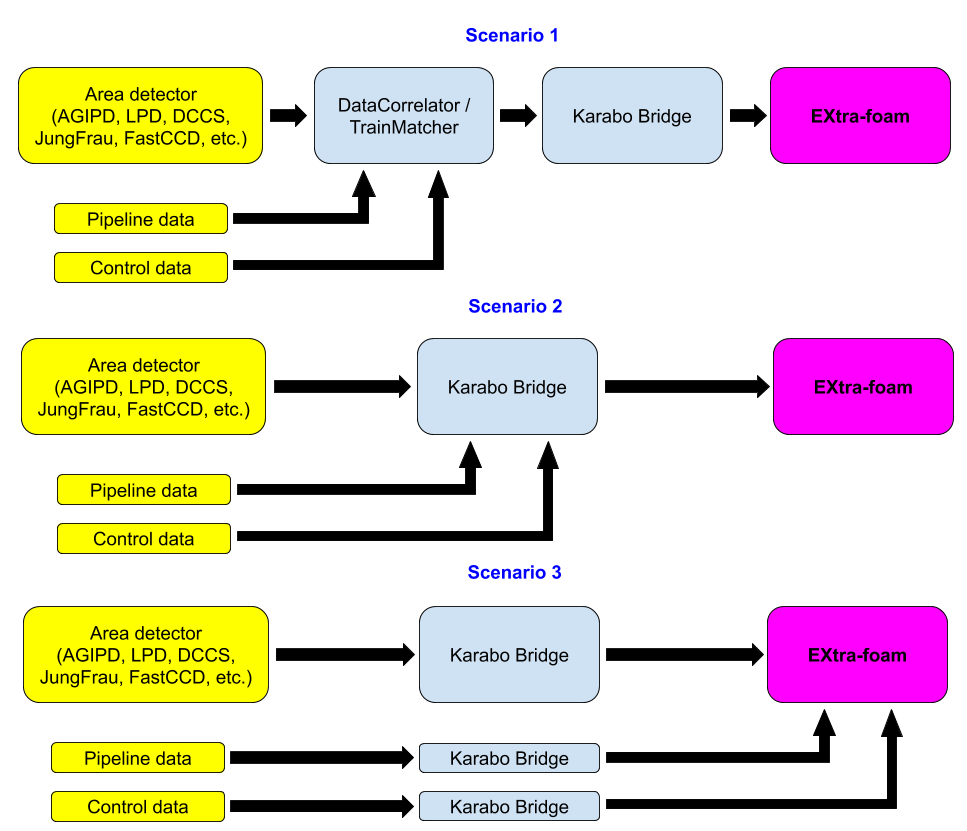

Fortunately, the aforementioned alignment is taken care of by DataCorrelator/TrainMatcher Karabo devices or EXtra-foam, users do not need to worry about that. As shown in the data flow chart below, there are three scenarios in EXtra-foam:

1. After the data from different sources are aligned in DataCorrelator/TrainMatcher, they will be serialized and streamed using ZeroMQ. This process is performed inside the PipeToZeroMQ device, which is also known as “Karabo bridge”. EXtra-foam makes use of the karabo-bridge-py, which is the client of the “Karabo bridge”, to receive and deserialize the data.

2. One can also send unaligned data separately into the Karabo bridge and EXtra-foam will align the data automatically after receiving the data. If not all the requested data in a given train can be found, they will be discarded.

  1. One can also send different data items via different Karabo bridges to EXtra-foam.

Postponing the data alignment in EXtra-foam is encouraged since it leads to lower latency. For example, suppose you would like to align data item ‘A’, which includes 32 frames of 1-Megapixel image data, and data item ‘B”, which is just a floating-point number. Reasonably, ‘B’ could always arrive 100 ms later than ‘A’ at the the computer in which a DataCorrelator and a PipeToZeroMQ devices are both running. If ‘A’ has to wait for ‘B’ in the DataCorrelator, it will take 200 ms in total for them to reach EXtra-foam, assuming transferring ‘A” via ZeroMQ takes 100 ms. However, if ‘A’ and ‘B’ can be sent out without being aligned, it will only take 100 ms for both of them to reach EXtra-foam and being immediately processed. It should be noted that the time spent on alignment the data is negligible.
